Product Description

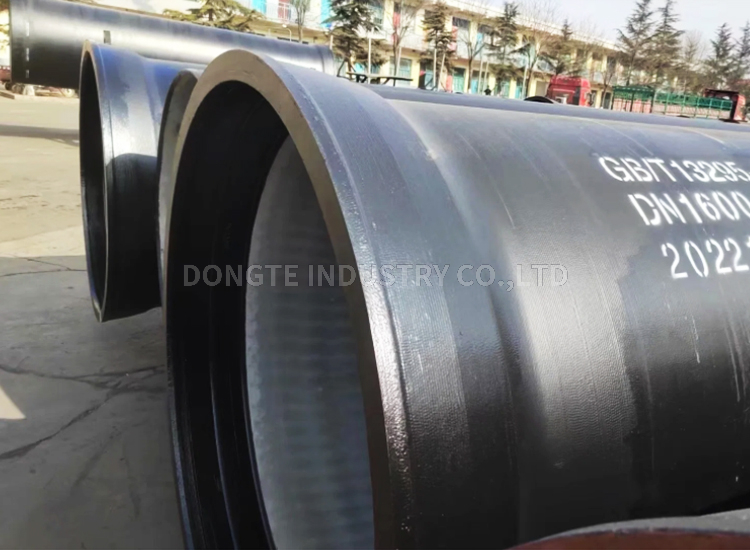

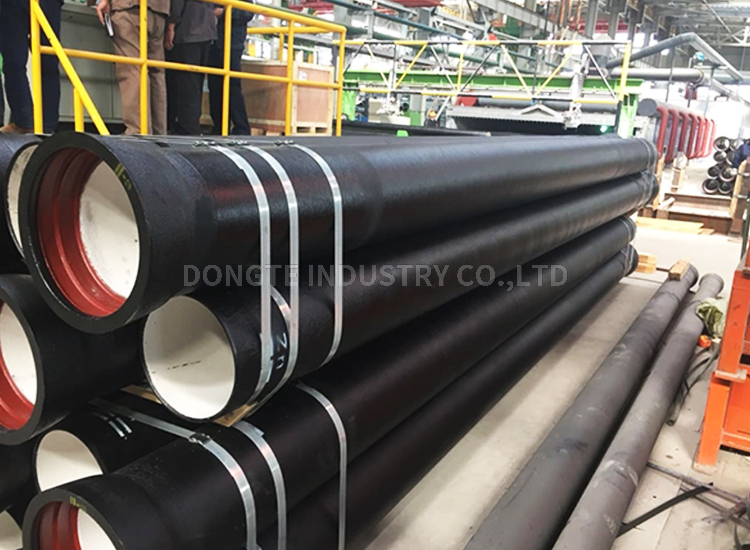

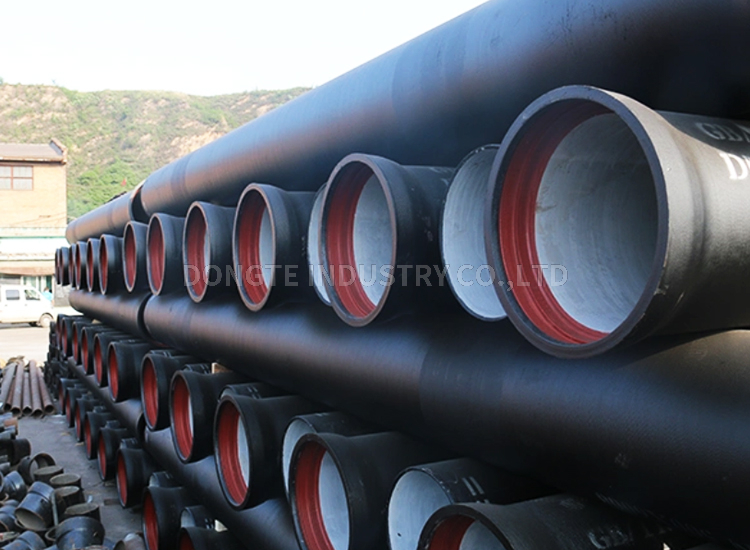

Ductile iron pipes are available in a range of diameters from 80mm to 1600mm and are suitable for both potable water transmission and distribution (in accordance with BS EN 545) and sewerage (in accordance with BS EN 598).

Ductile iron pipes are simple to joint, can be laid in all weather conditions and often without the need for selected backfill. Its high safety factor and ability to accommodate ground movement make it the ideal pipeline material for a wide range of applications.


PRODUCT PARAMETER


Type: The T-type Joint Pipe (Push-on)
The K-type Joint Pipe
The Self-Restrained Joint Pipe
Standard:ISO2531, EN545, EN598,etc
Size:DN80~2600mm ( T-type Joint Pipe)
DN1200~2600mm ( K-type Joint Pipe)
DN80~1600mm (Self-Restrained Joint Pipe)
Thickness:K9, K8, Class C
Length:6m, cut to 5.7m
Application:Water supply project, drainage, sewage, irrigation, water pipeline.
Certificate:ISO9001, BV, WRAS, BSI,CE
Internal Coating:a). Portland cement mortar lining
b). Sulphate Resistant cement mortar lining
c). High-Aluminum cement mortar lining
d). Fusion bonded epoxy coating
e). Liquid epoxy painting
f). Black bitumen painting
External Coating:a). Zinc + bitumen painting
b). Fusion bonded epoxy coating
c). Zinc-aluminum alloy + liquid epoxy painting
Brand NameSOLID
Packing:Pipes which diameter under 300mm are bundled with steel belts, Others in bulk
Note: The coating can also be accordance with customers' requirements.




Material

Ductile Iron 420-10 (DN60-DN2000), Ductile Iron 420-7
Length5.5 m to 6 m
SpecificationK7, K8, K9-K12 & C20, C25, C30, C40-C100
ApplicationPotable Water / Drinking Water
Sewage Water
Connection JointT Type / K Type / Anchoring Joint / Self-Restrained Joint
External CoatingZinc + Bitumen/Epoxy Painting / ZnAl (85% + 15%) + Bitumen/Epoxy Painting / Polyurethane Coating (as per ISO8179), with Polyethylene Sleeve as per ISO8180
Internal LiningOrdinary Portland Cement / Sulphate Resistance Cement / High-Alumina Cement
Mortar Lining, Polyurethane Coating (as per ISO4179)
StandardISO 2531, EN545, EN598 and other major standards.
Quality ControlMechanical Properties Testing
Chemical Component AnalysisHydraulic pressure Test
Rubber GasketEPDM / SBR / NBR (EN681-1, ISO4633)
CertificationBSI, SGS, BV, TUV, WRAS ......


COMPANY PROFILE


The company has passed ISO9001 quality management system certification and CE certification.  Our MTC is based on en10204-3.1 certificate.  We support third party testing such as SGS, BV and Lloyd's.


● Main products: carbon steel plate, container plate, wear plate, manganese plate, alloy, seamless tube, welded tube, API, precision tube, spiral tube, square tube, galvanized tube, I-steel, Angle steel, channel steel, H-shaped steel, flat steel, etc., can be produced according to ASTM, JIS, DIN, BS and other standards.  Products are exported to Europe, the Middle East, the United States, Southeast Asia and other more than 50 countries and regions.


● The company has more than 200 employees, including 12 senior engineers and assistants.  Existing engineering and technical personnel 16 people, technical personnel 20 people.  The company provides heat treatment, CNC machining, testing, packaging and a series of processing technology.  We pay more attention to quality and after-sale service.


● Our aim is: customer first, customer demand first, customer profit first.
