Product Description
Product Overview

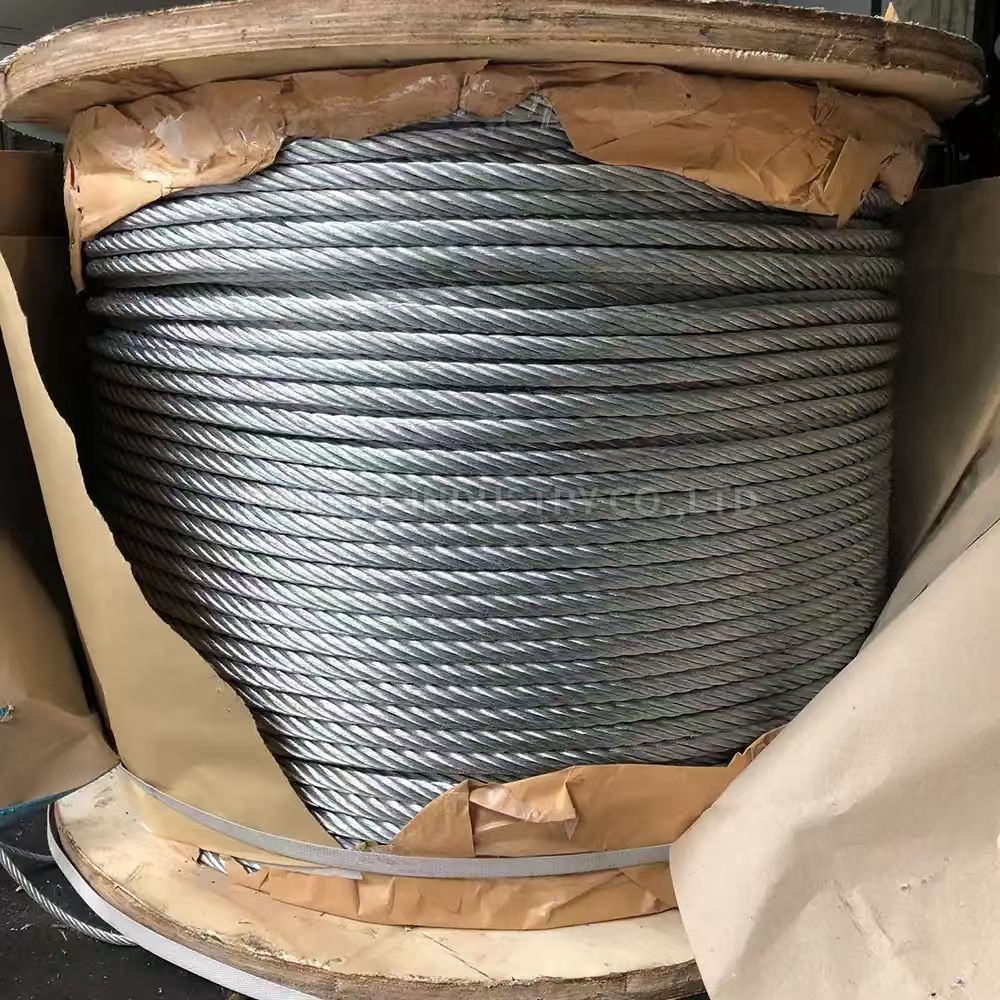

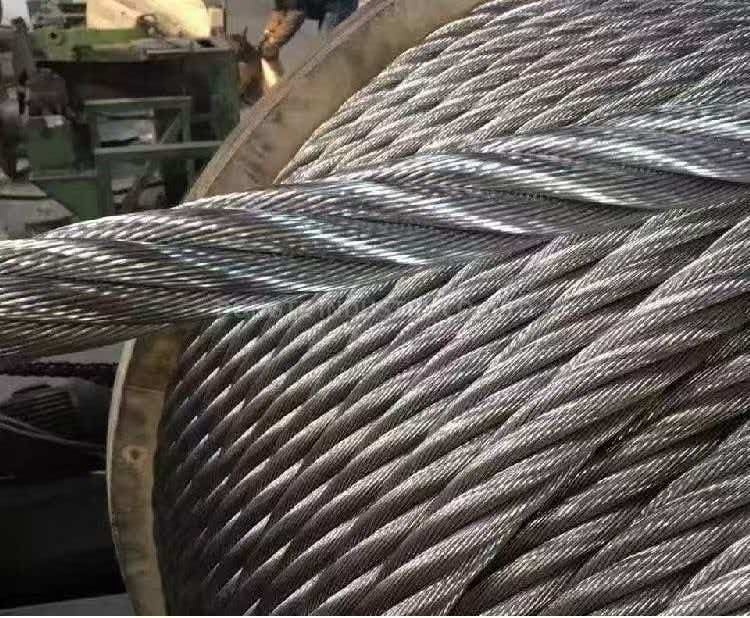

Bright wire rope, also known as ungalvanized steel wire rope, is manufactured from high-quality high-carbon cold-drawn steel wires without any surface anti-corrosion coating. The rope presents a smooth and bright original steel finish. Each piece is pre-lubricated with special industrial grease during production to provide temporary rust protection and reduce friction during operation.
With mature stranding technology, this wire rope features high tensile strength, stable structure, good flexibility and low elongation. It is the most cost-effective steel wire rope for dry and indoor industrial working conditions.
Product Specifications & Common Constructions
Common Structures: 6×7, 6×19, 6×37, 19×7, 7×19
Core Type: FC (Fiber Core) / IWRC (Independent Wire Rope Core)
Diameter Range: 1.2mm – 40mm (Custom sizes available)
Material: High carbon steel wire
Tensile Strength Grade: 1570MPa / 1670MPa / 1770MPa / 1870MPa / 1960MPa
Key Features
- High Cost Performance: No galvanized coating process, lower price than galvanized and stainless steel wire rope with the same strength level.
- Superior Bearing Capacity: High breaking force, stable mechanical performance, not easy to deform under load.
- Smooth & Low Friction: Bright and neat surface, flexible winding, smooth operation on winches and pulleys.
- Good Toughness & Fatigue Resistance: Uniform stranding structure, resistant to repeated bending and abrasion in dry working environments.
Customizable: Multiple structures and diameters to meet different industrial traction and hoisting requirements.
