Product Description

It is roll formed by roll forming machine, which have various styles and rich colors.It is widely used in factories,hotels,exhibitions, villas and civil construction.It is easy to be transported,then it can save human and materials resources during building. It is extensively used for its excellent properties acrossindustrial construction and infrastructure projects, for instance inwarehouses,airports,conventionand exhibition halls, automotive showrooms.


PRODUCT PARAMETER

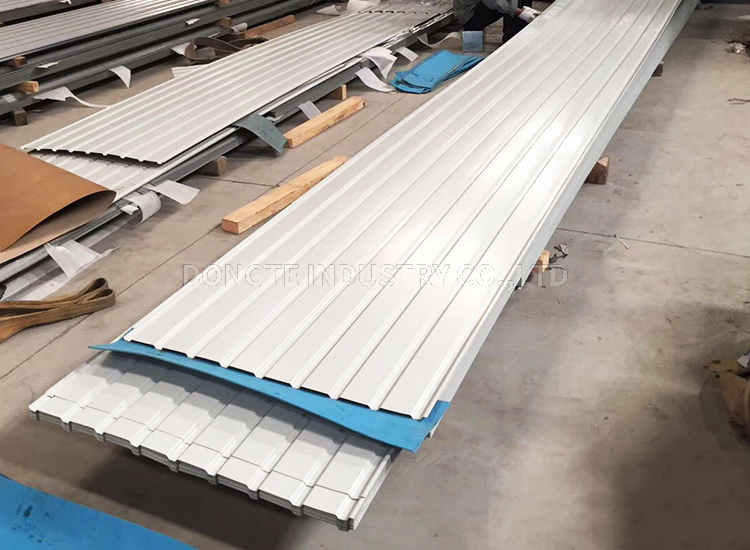

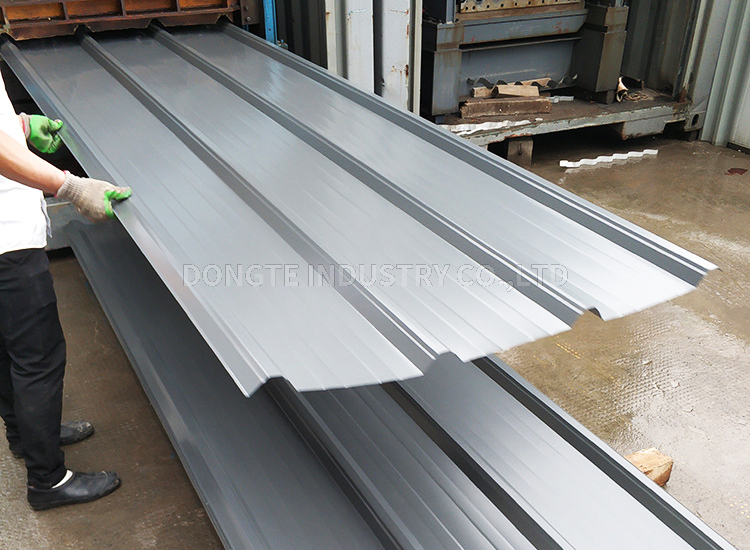

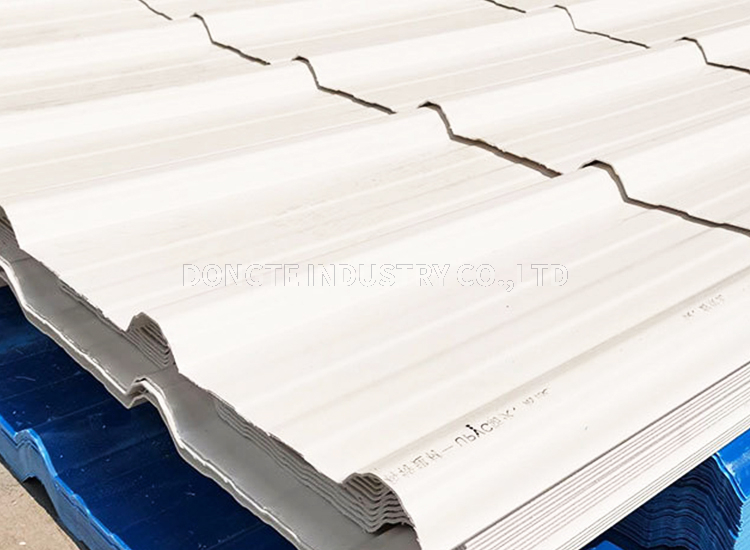

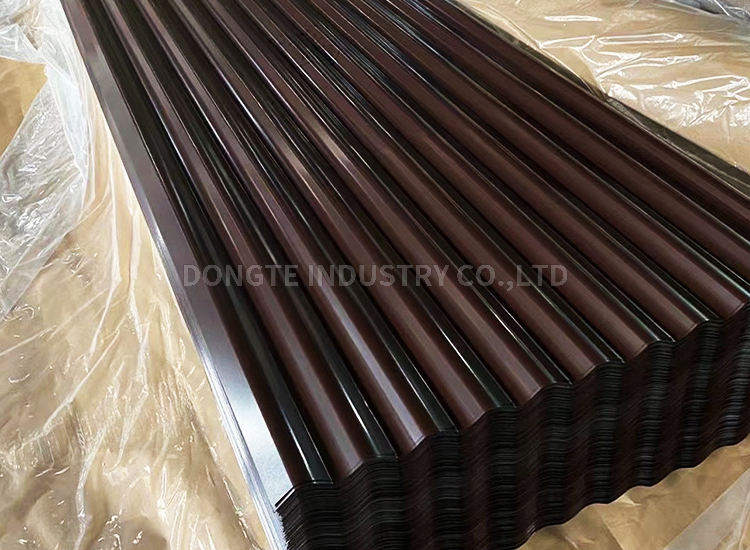

ProductPPGI corrugated roofing sheet
Base materialHot dipped galvanized steel sheet
Hot dipped galvalume steel sheet
Material GradeSGCC / SGCH / DX51D+Z / DX51D+AZ, etc
Thickness0.13-0.8mm
Width before corrugation750mm,762mm,900mm,914mm,1000mm,1200mm
Tolerance Thickness: +/-0.02mm
 Width:+/-2mm
Zinc-coating 60g/m2-275g/m2(G30-G60)
TechniqueRaw material: Hot rolled steel coil --> Cold rolled_>hot dipped galvanized_>corrugated
Terms  Raw material width 762mm, after corrugated width 665mm: 9 waves
  Raw material width 914mm ,after corrugated width 800mm:11 waves
  Raw material width 1000mm, after corrugated 890mm or 900mm:12-14 waves
Feature  Roofing Steel Sheet have excellent performance of decoration,
  corrosion resistance etc.
Export package  Waterproof paper, galvanized steel covered and steel strip packed




CommodityCorrugated roofing sheets
Type of coating:Hot dipped galvanized/Prepainted
Zinc coating:Z40-275g/m2
StandardJIS G3302,ASTM A653,EN10327/DIN 17162
GradeSGCC/CS-B/DX51D or equivalent.
TypesCommercial / Drawing / Deep Drawing / Structural Quality
Surface treamentChromated / skinpass/ oiled/slightly oiled/ dry
Surface finishedMinimized spangle / regular spangle/ big spangle
Width688/750/820/850/900/915
Thickness0.12-2.5mm (0.14-0.5mm is the most advantage thickness)
ColorRAL or customization
Bundle Weight2-3Ton Per Pallets
PackageWater proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by
seven steel belt.or according to customer's requirement
ApplicationIndustrial panels, roofing and siding for painting


COMPANY PROFILE


The company has passed ISO9001 quality management system certification and CE certification.  Our MTC is based on en10204-3.1 certificate.  We support third party testing such as SGS, BV and Lloyd's.


● Main products: carbon steel plate, container plate, wear plate, manganese plate, alloy, seamless tube, welded tube, API, precision tube, spiral tube, square tube, galvanized tube, I-steel, Angle steel, channel steel, H-shaped steel, flat steel, etc., can be produced according to ASTM, JIS, DIN, BS and other standards.  Products are exported to Europe, the Middle East, the United States, Southeast Asia and other more than 50 countries and regions.


● The company has more than 200 employees, including 12 senior engineers and assistants.  Existing engineering and technical personnel 16 people, technical personnel 20 people.  The company provides heat treatment, CNC machining, testing, packaging and a series of processing technology.  We pay more attention to quality and after-sale service.


● Our aim is: customer first, customer demand first, customer profit first.
